Grandlite International Corp

LED-1140B Selectable

•
•
•
•
•

•
•
•
•
•

LED-1140B

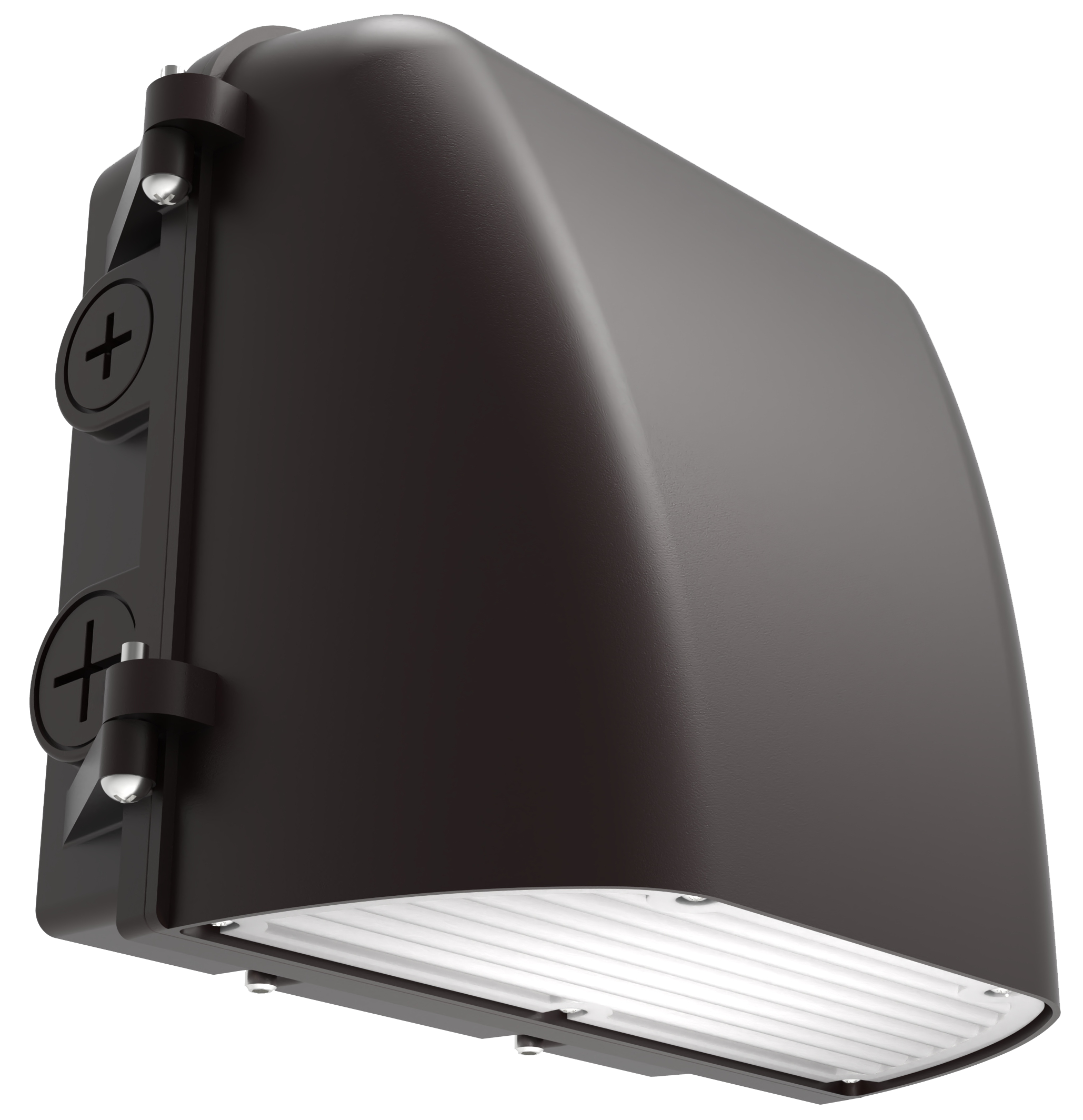

Utilizing  the  latest  generation  of  LEDs  and  a  FAO  smart controller,  this  wall  pack  delivers  similar  light  output  as  a 150/200W metal halide and has multiple wattages and CCTs to choose from for different applications. The housing is made out of  die-cast  aluminum  with  reliable  powder  coating  specifically for  harsh  outdoor  environment.  It  is  attractive  in  appearance and performance.

-UL and CUL listed for wet locations.
-Die-cast aluminum body
-UV stabilized powder coated finish
-High impact polycarbonate lens
-Finish - Bronze



• Model Number	LED-1140B
  System Wattage	40/30/20W
  Dist. Type	Type IV
  Delivered Lumens (lms.) - Based on highest wattage 5000K	5828
  Efficacy (lm/W) - Based on highest wattage 5000K	146
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K / 4000K / 5000K
  Input Voltage	120~277 V
  Dimensions (Inches)	5.37" x7.56" x 8.65"




  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Housing Finish	Mounting	Accessories
  LED-1140B	40W	120-277V	3000K 4000K 5000K *Selectable	Bronze • Custom	Wall mount	Optional Photocell  4W Emergency Driver

  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.



•  Download Datasheet
