Grandlite International Corp

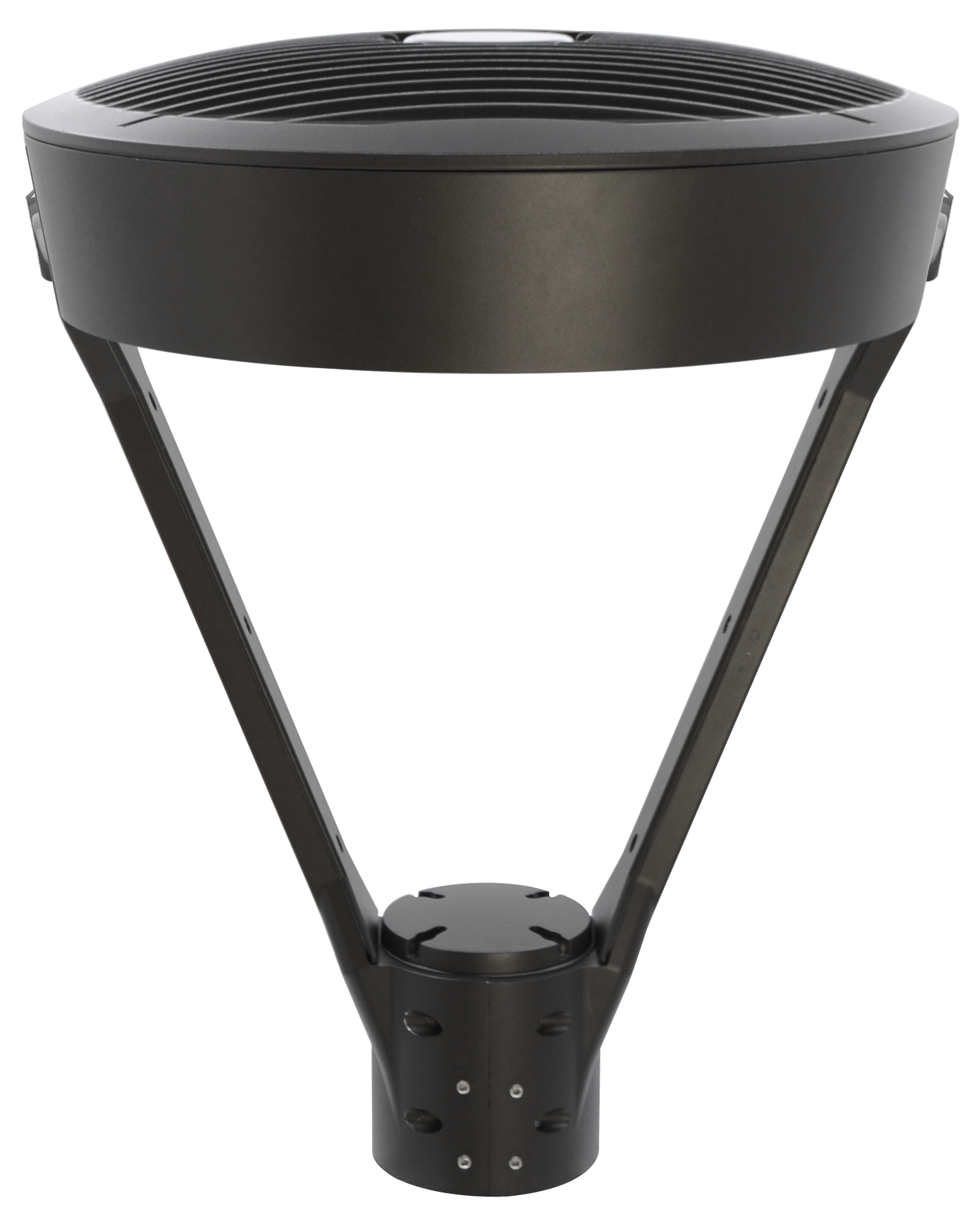

LED-9800 Selectable

• -UL and CUL listed for wet location.
  -Corrosion resistant heavy duty-cast aluminum construction. Standard 2 3/8" open on the bottom.
  ​-Pass 3 G vibration testing.
  ​-Wiring comparting on the top for easy access and ease of installation.

  FINISH:
  Superior powder coat finish to withstand the toughest weather.

  OPTIONS:
  Precision injection-molded, UV polycarbonate Optics Lens
  Optional photocell with adder
  Optional 347V with adder



  Model Number	LED-9800 Selectable
  Nominal Watts	80/60/45W	160/125/100W
  Delivered Lumens* (Lms. based on the highest wattage 5000K)	9567 lm*	19220 lm*
  Efficacy* (Lm/W based on the highest wattage 5000K)	121 lm/w*	121 lm/w*
  Color Rendering Index (CRI)	80+
  Color Temperature (CCT)	3000K/ 4000K / 5000K
  Input Voltage	120~277V
  Dimensions (Inches)	17.3"x17.3"x22.2"



  Build Your Order

  Model Number	System Wattage	Voltage	CCT	Electrical	Housing Finish
  LED-9800	80W 160W SELECTABLE	120-277V	3000K 4000K 5000K SELECTABLE**	Photocontrol** ​HSS 180 Degree Shield** Occupancy Sensor**	Bronze Black**​ CUSTOM**

  **Optional with adder
    *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
  **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
     Actual production units may vary from the values reported here by up to +/-10%.


• Download Datasheet
