GRPL-10A-C/S Selectable

GRPL-10A-C/S
LED Bollard Selectable

This attractive, newly redesigned heavy-duty bollard features full proof aluminum construction housing, providing corrosion and vandal resistance,
ideal for lighting pedestrian walkways, as well as accenting the exterior grounds of office and apartment buildings, hotels and parks.
A solid construction withstands the elements, driver options work in even the worst weather conditions.

Spec. Download

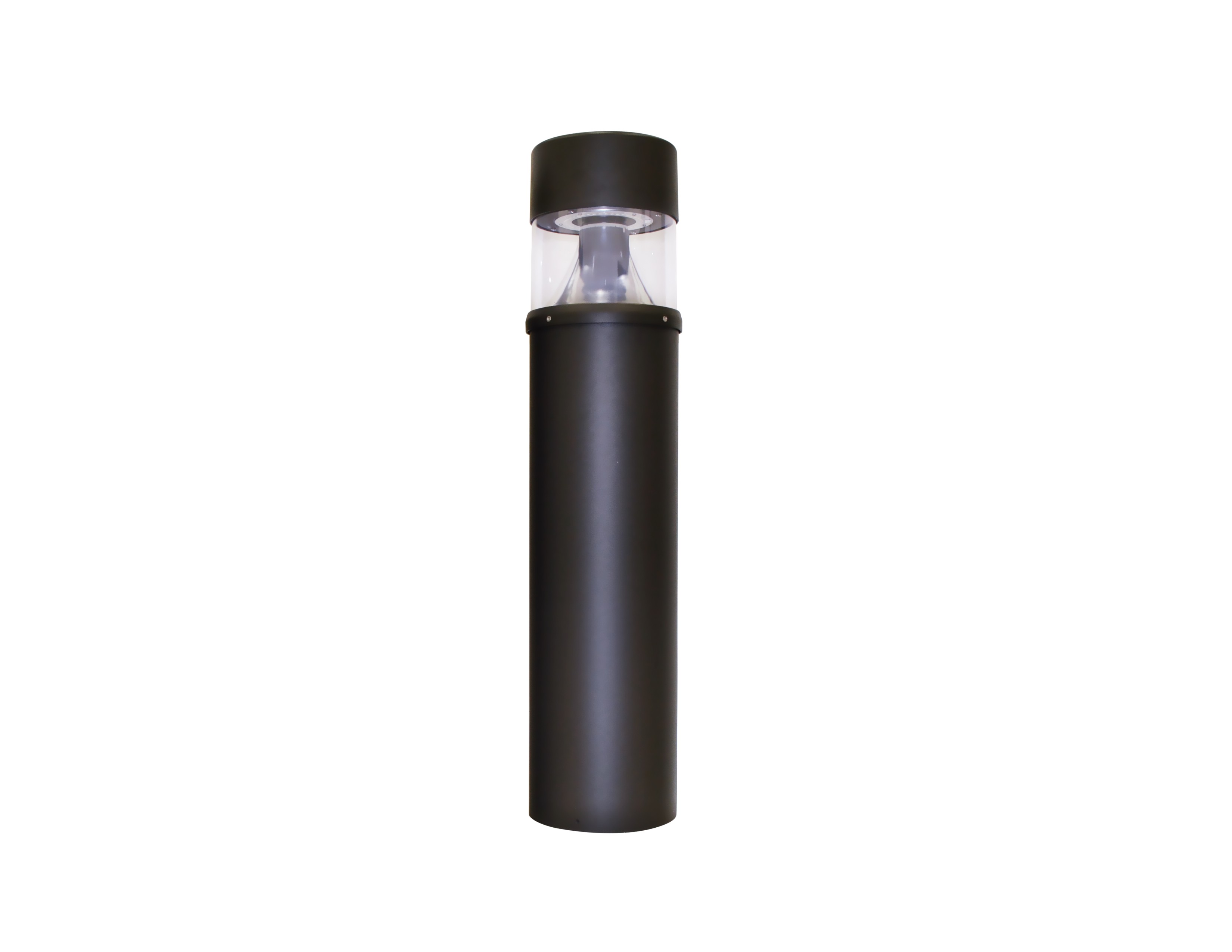

  • -GRPL-10A-C:  Cylinder Top  (Flat)

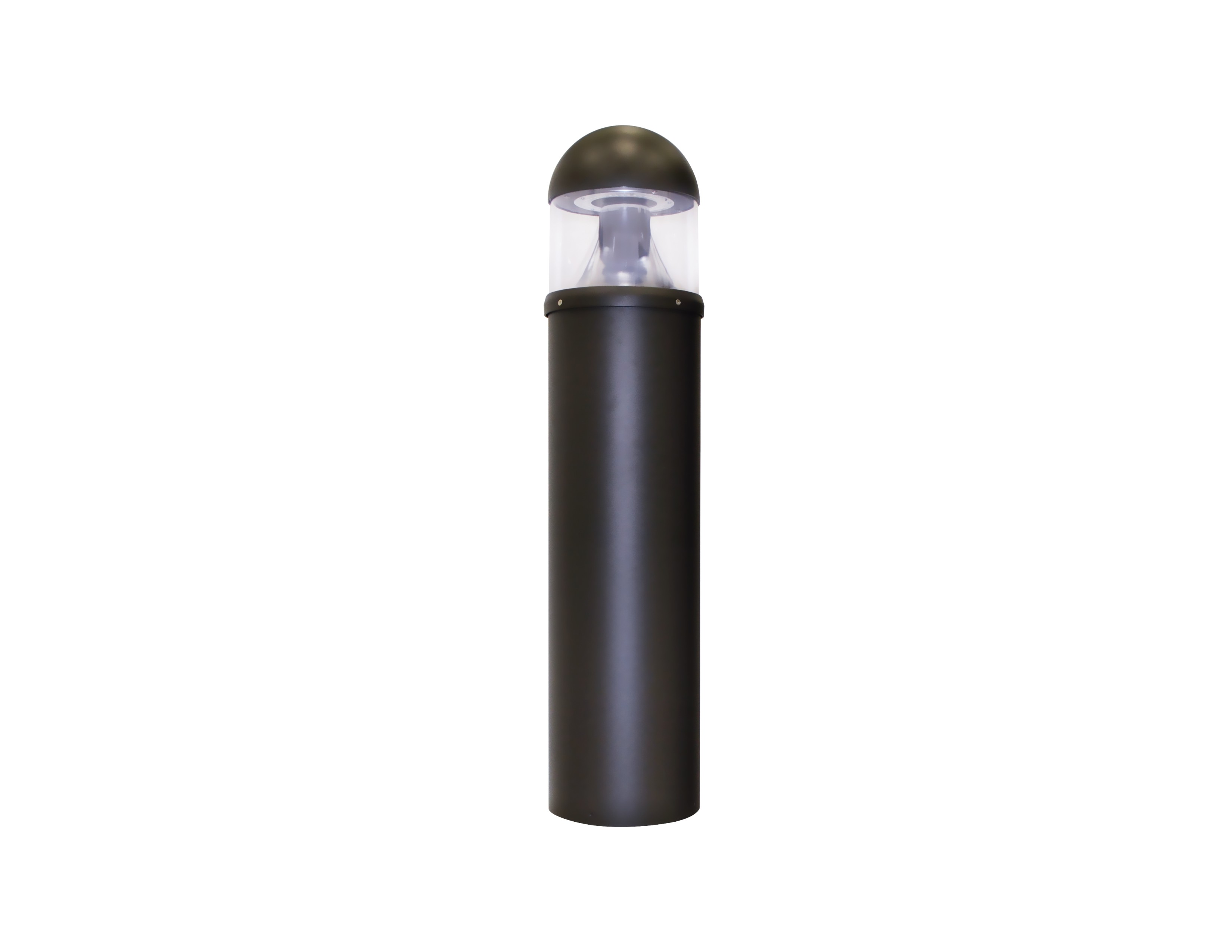

    -GRPL-10A-S:  Sphere Top  (Round)

    -UL and CUL listed for wet locations.
    -DLC Premium Listed.
    -Consisting of an extruded aluminum alloy body.
    -Standard 4kV surge.
    -High-impact polycarbonate diffuser.
    -Options:  Anodized alumimum reflector.
    -Finish: Bronze.
    -Dist. Type:  Type V.

    Features:
    -LED compartment is airtight to prevent fogging and condensation build up and keep water out.
    -Aluminum reflector designed to reduce glare and produce an even distribution.
    -Clear UV resistant polycarbonate lens allows for optimal light transmission and protects the light engine compartment from harsh environments.
    -Driver is mounted under the LED compartment for easy replacement and to pretect from water, that may accumulate in the base of the bollard.
    -Torx security screws secure the LED compartment to the base to deter vandalism.
    -Versatile mounting plate allows for easy installation and replacement for any project or development.
    -Extruded aluminum tube provides strength and durability as well as protects and conceals the component wiring.
    -Terminal block provided on base bracket for easy installation of incoming supply wires.
    -Quick disconnect located near the terminal block for simple connection to the LED driver.
    -Working temperature: -40    ﾟC ~ + 40ﾟC .


    Model Number GRPL-10A-S (Sphere Round)/  GRPL-10A-C (Cylinder Flat)
    Nominal Watts* 20/28/37W
    Delivered Lumens (Lms. based on the highest wattage 5000K) 4818 lm
    Efficacy (Lm/W based on the highest wattage 5000K) 132.38 lm/w
    Color Rendering Index (CRI) 80+
    Color Temperature (CCT) 3000K/ 4000K / 5000K
    Input Voltage 120~347V

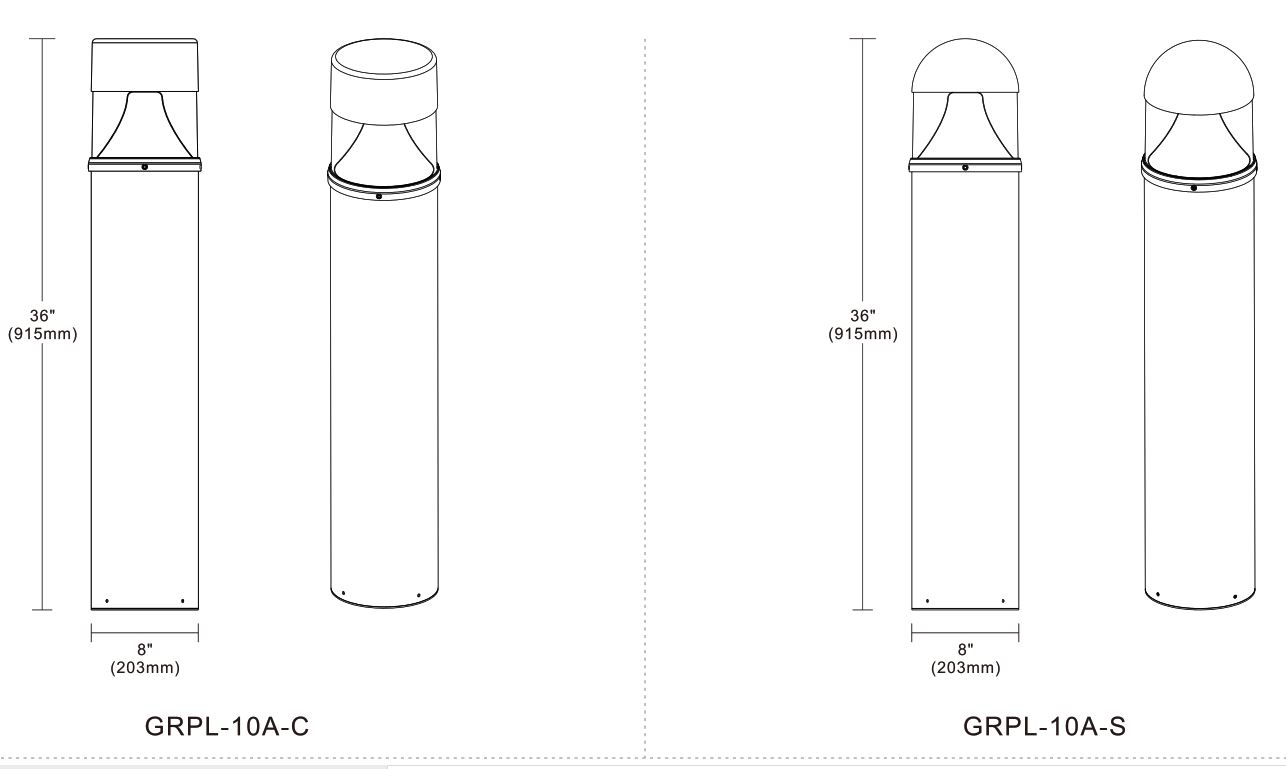

    Dimensions (Inches) 8" * 8" * 36" inches


    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories
    GRPL-10A-S (Sphere)
    GRPL-10A-C (Cylinder)
    		  20/28/37W  120-347V 3000K
    4000K
    5000K
    • Selectable    		 BRONZE
    • Custom    		 Versatile mounting plate allows for easy installation
    and replacement for any project or development    		 Standard 4kV Surge protector
    Anodized alumimum reflector


  •  Download Datasheet
