LED-4650V
LED-4650V

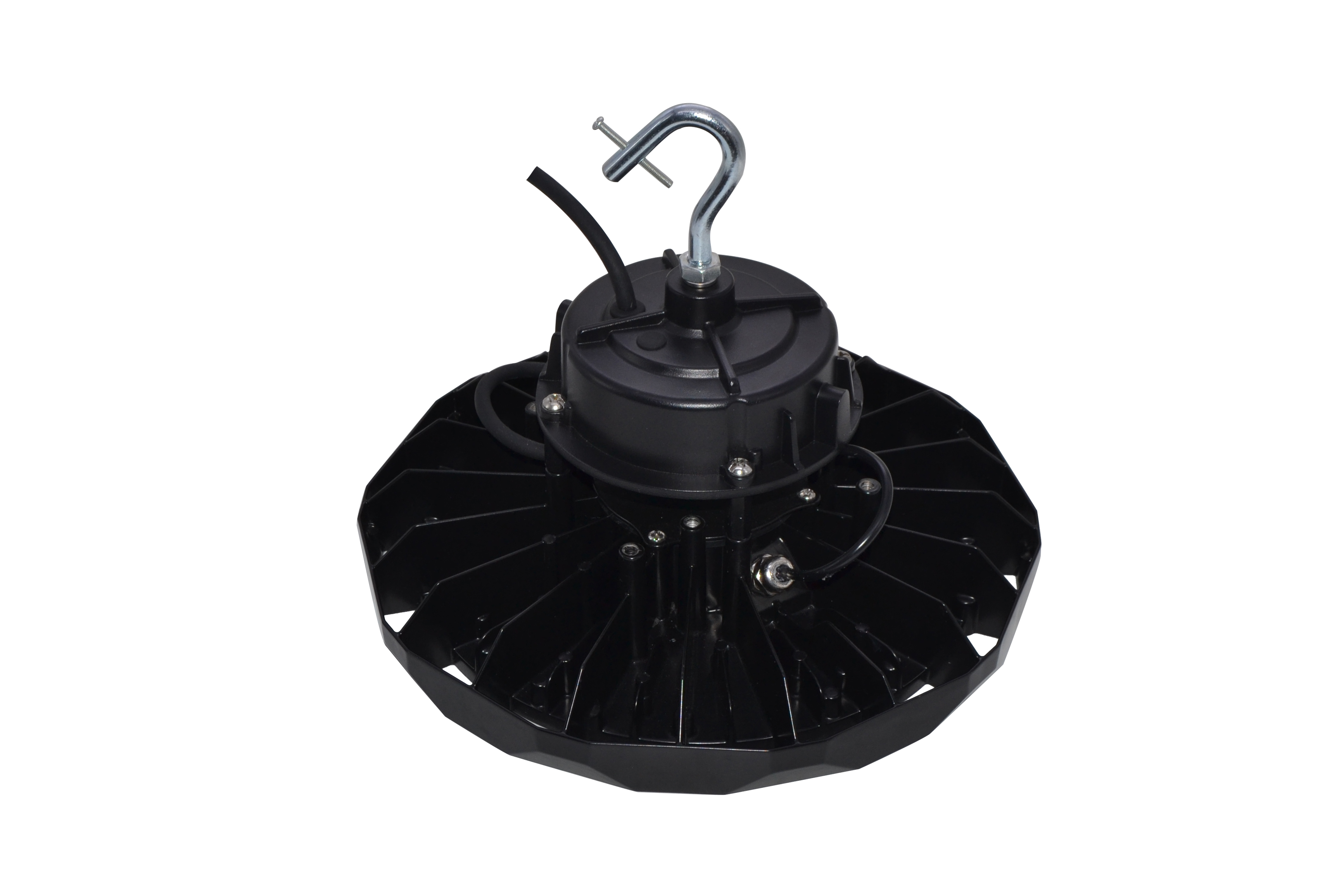

LED HIGH BAY
A unique feature for the fixture is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.
LED HIGH BAY
A unique feature for the fixture is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.
-
FEATURES:
-UL and CUL listed for damp locations.
Housing:
-Superior heavy duty die cast aluminum construction.
Options:
-Acrylic reflector. AL reflector.
-16" Flat glass, drop lens, Conical drop lens.
-6KV surge
-1-10v Dimming
-Optional 347V with adder.
Model Number LED-4650 (135W) LED-4650 (180W) LED-4650 (240W) System Wattage 135/180/240W Delivered Lumens (Lms.) 31535 lm** Efficacy (Lm/W) 125 lm/W Color Rendering Index (CRI) 80+ Dist. Type Type V Color Temperature (CCT) 4000K / 4500K / 5000K Input Voltage 120-277V Dimensions (Inches) 11.57" * 5.83" * 7.52" inches
Build Your OrderModel
NumberSystem
WattageVoltage CCT Optional Accessories Housing
FinishMounting
LED-4650 V135W 120-277V 4000K
4500K
5000K
CUSTOM**16" Flat Glass and Clamp Band16" Drop lens with clamp band
16" Conical Drop lens with clamp band
Aluminum Reflector white
Aluminum Reflector gloss
Acrylic Reflector Clear
Acrylic Reflector Matte
16" wire guard
Microwave occupancy sensor
30W Emergency driverWHITE
BLACK**
CUSTOM**die-cast Hook 180W 240W **Optional with adder
*Different LED Kelvin temperature available with 7-8 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
