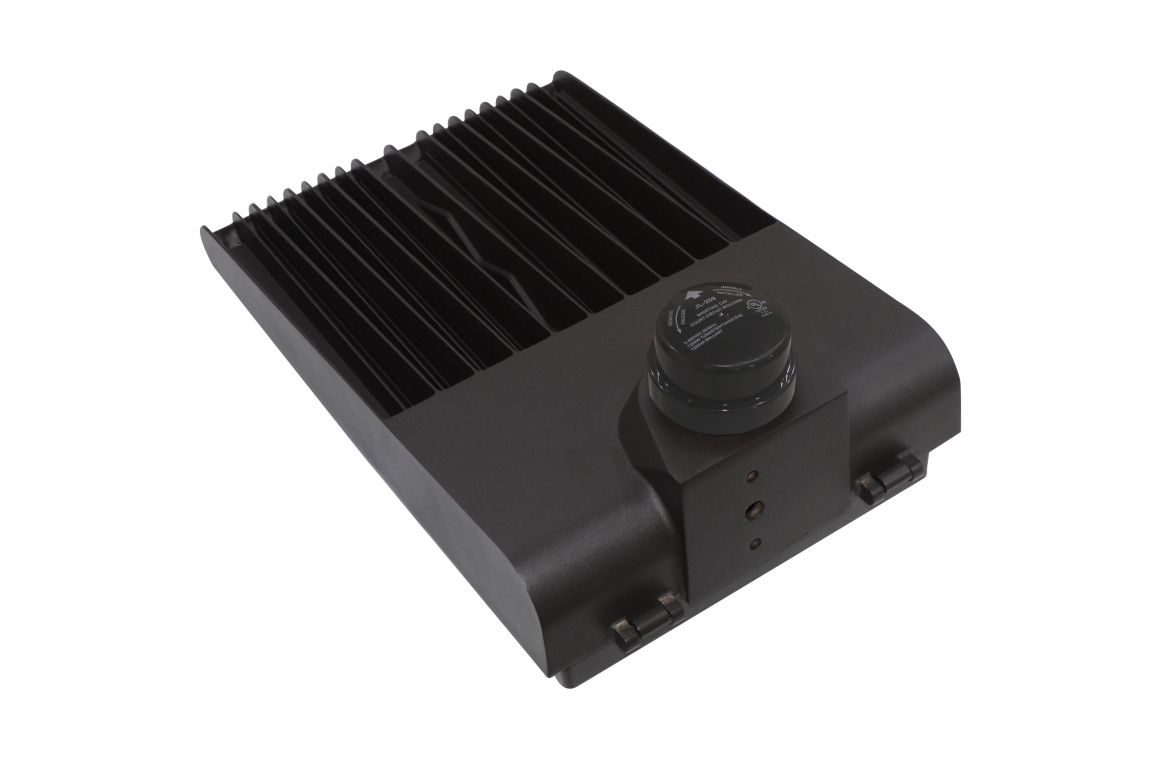

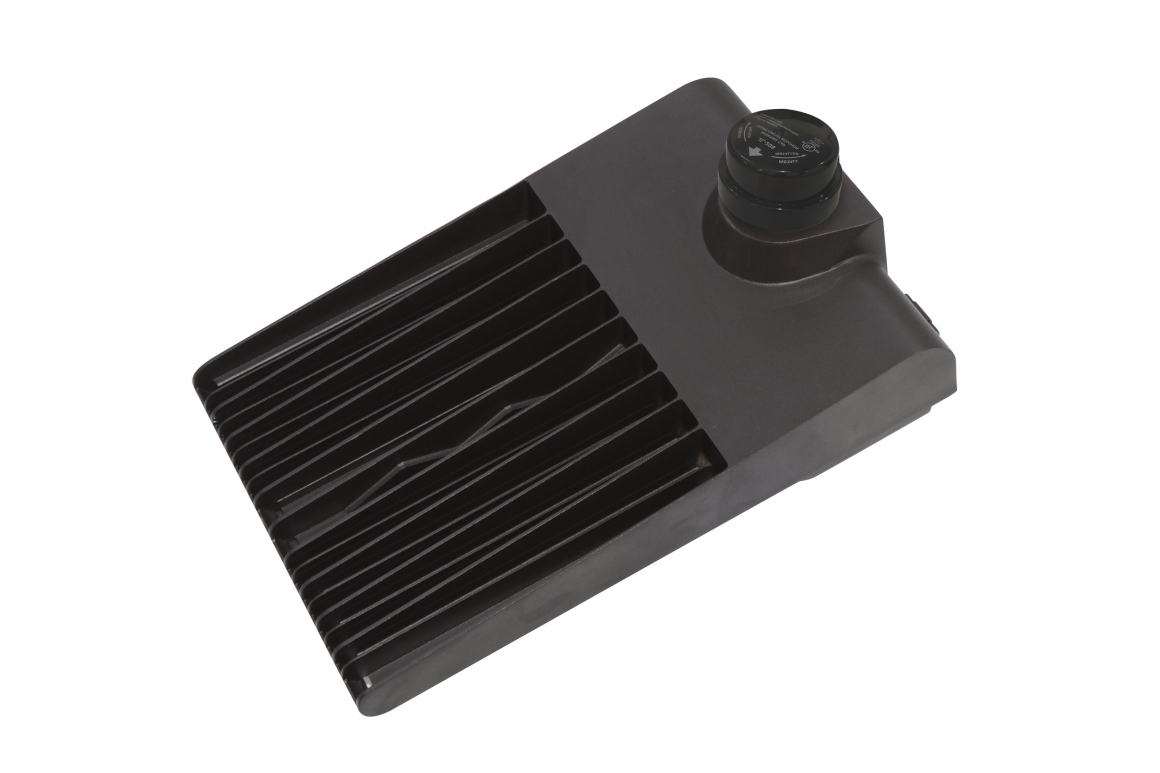

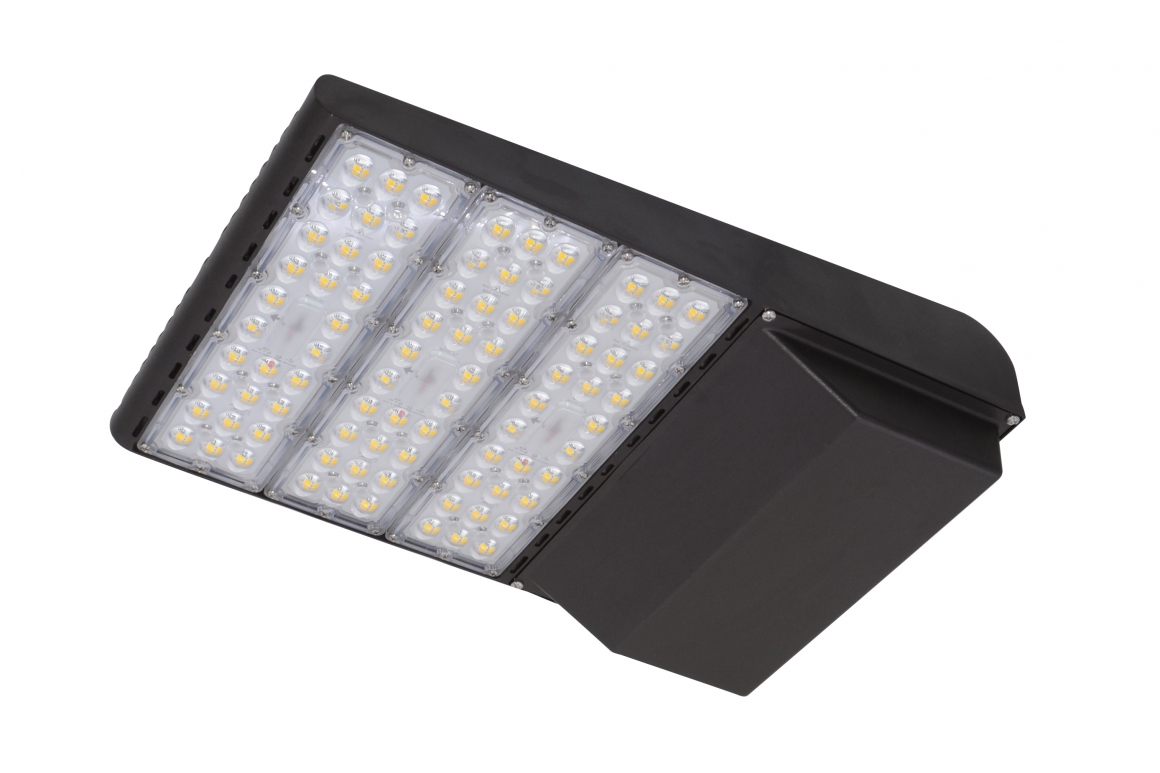

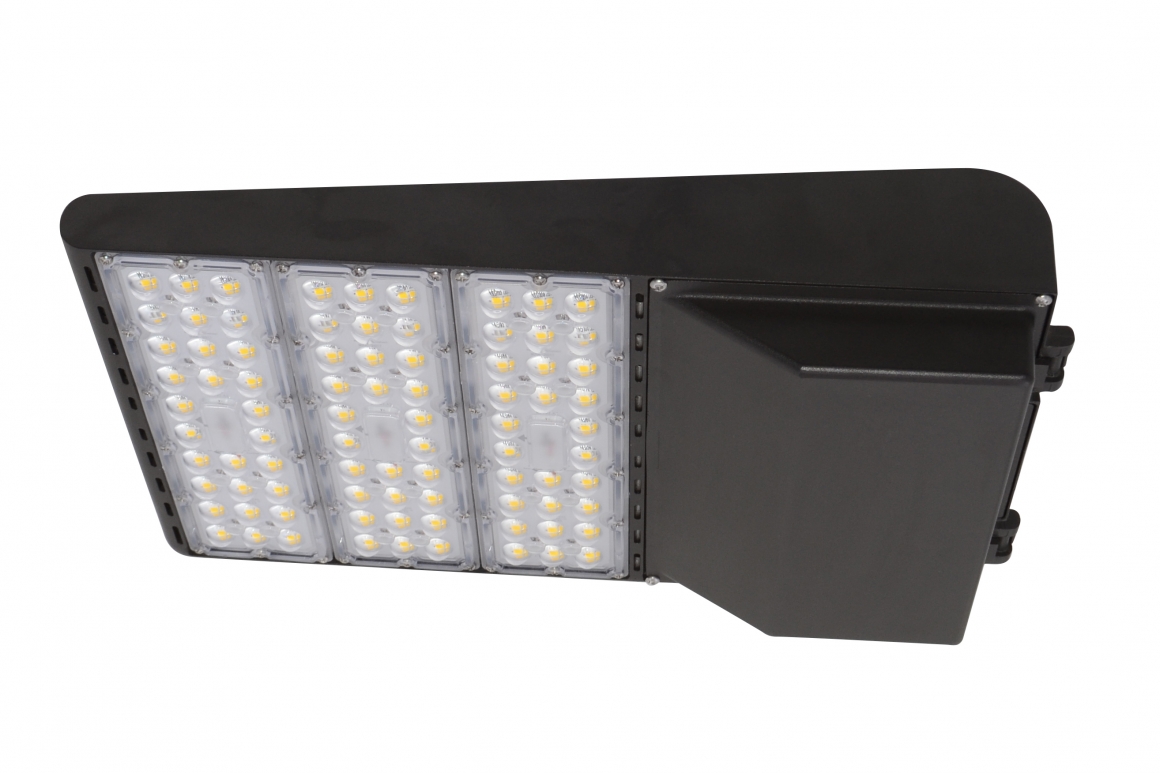

LED-6073

LED-6073
LED AREA LIGHT

This sleek and modern luminaire has been designed to handle any environment.
With an appealing slimline design along with one of the highest lumen performance on the market,this versatile fixture can be used as a flood light or an area light. Including a multitude of mouting options, surge protection devices, IOT photocell capability, and the most technologically advanced LED's on the market, the LED-6073 is ready to conquer the lighting landscape.

Spec. Download

-UL and CUL listed for wet location, DLC premium.
-ONE-PIECE die-cast aluminum body with die-cast hinged driver access for easy installation.
-LEDs: The most technologically advanced LED chips in the market.
-UV stabilized powder coated finish
-Lens: Optional Type III, Type IV, Type V optics.
-Standard 4kV Surge.
-Finish - Bronze. Color options with adder

Model Number	LED-6073-L192	LED-6073-L264
System Wattage	222W	308W
Delivered Lumens (Lms.)	27500	38017
Efficacy (Lm/W)	124	123
Color Rendering Index (CRI)	70+
Color Temperature (CCT)	4000K / 5000K
Input Voltage	120~277 V

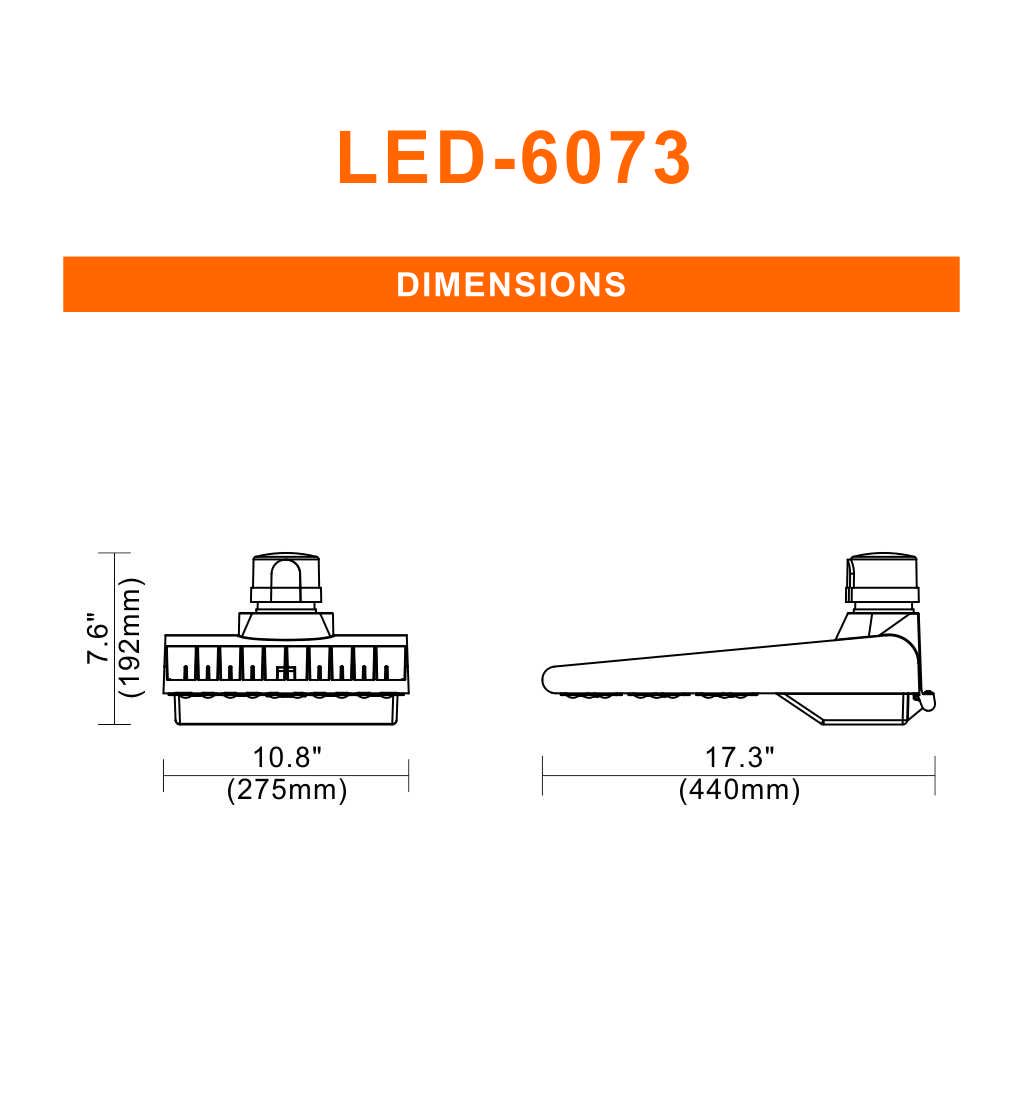

Dimensions (Inches)	17.3"x 10.8" x 7.6"

Build Your Order

Model Number	System Wattage	Voltage	CCT	Housing Finish	Mounting	Accessories
LED-6073-L192 LED-6073-L264	222W 308W	120-277V	4000K 5000K	Bronze	Trunnion Slip fitter Pole mount	Lens: Type III, IV, V options options IOT Photocell capability Standard 4kV Surge

*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.
