LED-4F / 8F

LED-4F / 8F
LED STRIP LIGHTING

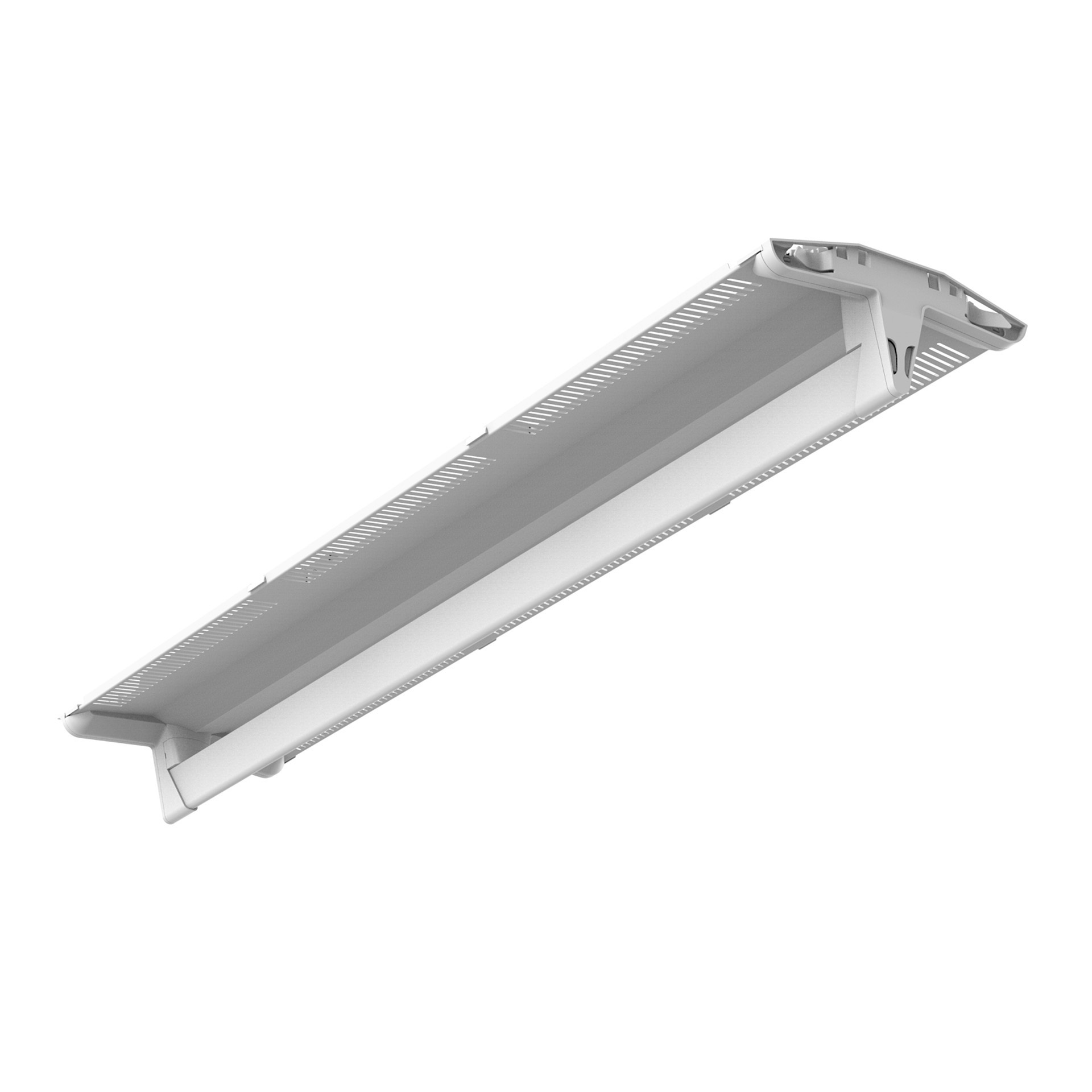

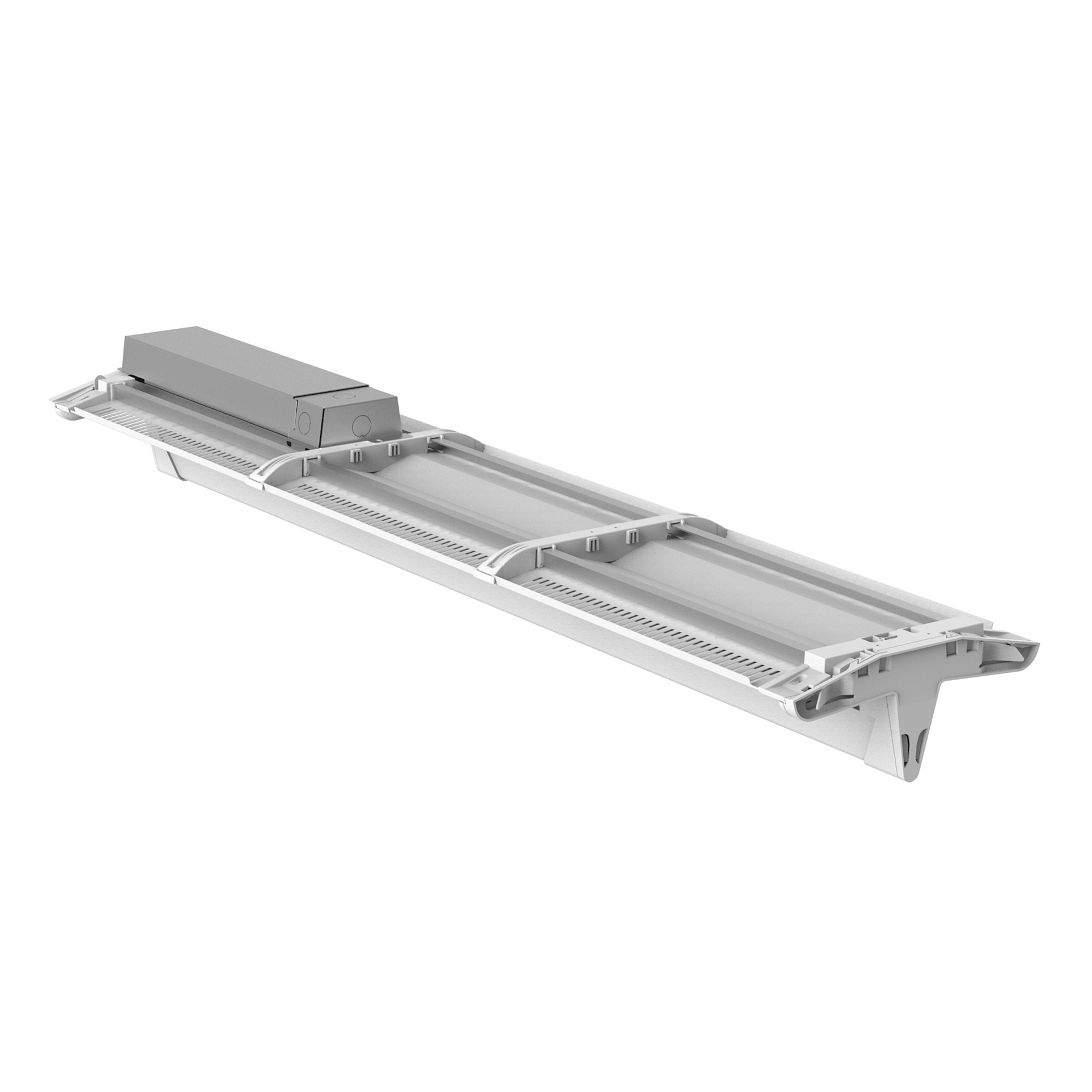

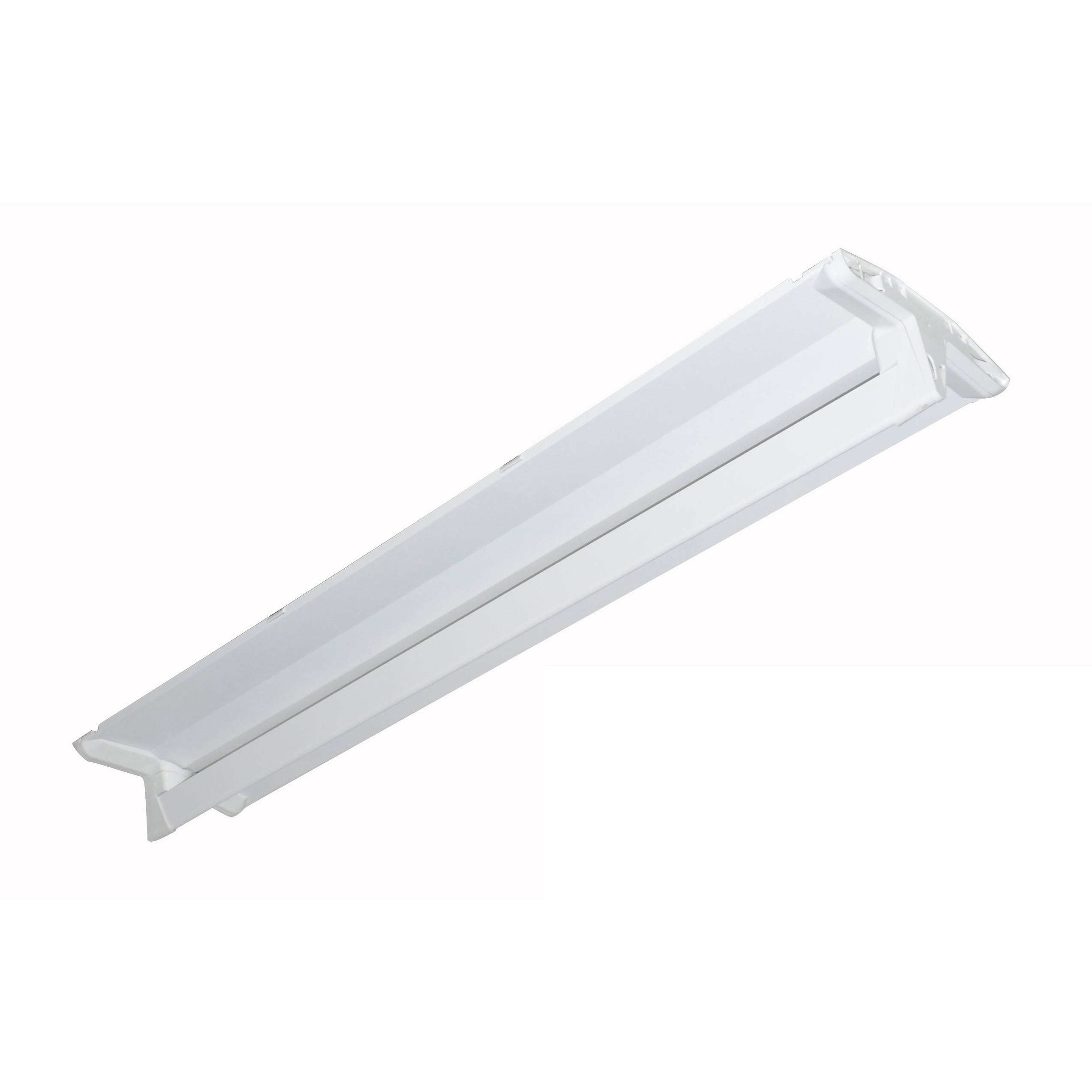

This unique fixture provides a modern, sleek solution that combines highly efficient performance with functionality. The LED-4F/ 8F series includes a built-in jbox for easy access to wiring during install and an easily replaceable light engine.
Spec. Download
  • LED Strip Lighting

    FEATURES:
    -UL and CUL listed
    -Housing made of high quality steel with high reflectance paint, providing high lumen output.
    -Ambient Temperature:  suitable for use in -200C to + 400C
    -Efficacy:  Up to 130 lm/W (see individual wattage data)
    -CCT:  3000K / 3500K/ 4000K / 5000K
    -CRI:   80CRI
    -Optics:  Precision and and high reflectance lens producing superior uniformly.

    ELECTRICAL FEATURES:
    -Voltage:  120-277V standard, Class 2 constant current Drivers with 90% power factor, <20% THD. Driver efficiency (>90% standard); 50/60Hz;
    -2KV Surge protector per ANSI/IEEE C62.412;
    -Dimming 0-10V driver Standard.
    -Occupancy sensor (PIR) optional.

    FINISHES:
    -Polyester powder white finish, Multi-stage process produces 3mil thickness for superior corrosion and maximum environment durability.



    Model Number LED-4F-D/U-40 LED-4F-D/U-50 LED-4F-D/U-65 LED-4F-D/U-92 LED-8F-D/U-80 LED-8F-D/U-100 LED-8F-D/U-131 LED-8F-D/U-185
    System Wattage 40W 51W 69W 92W 81W 95W 127W 182W
    Delivered Lumens (Lms.) 5330 6639 8771 12100 10661 12793 17058 24201
    Efficacy (Lm/W) 133.2 130.2 127.1 131.5 131.6 134.6 134.3 132.9

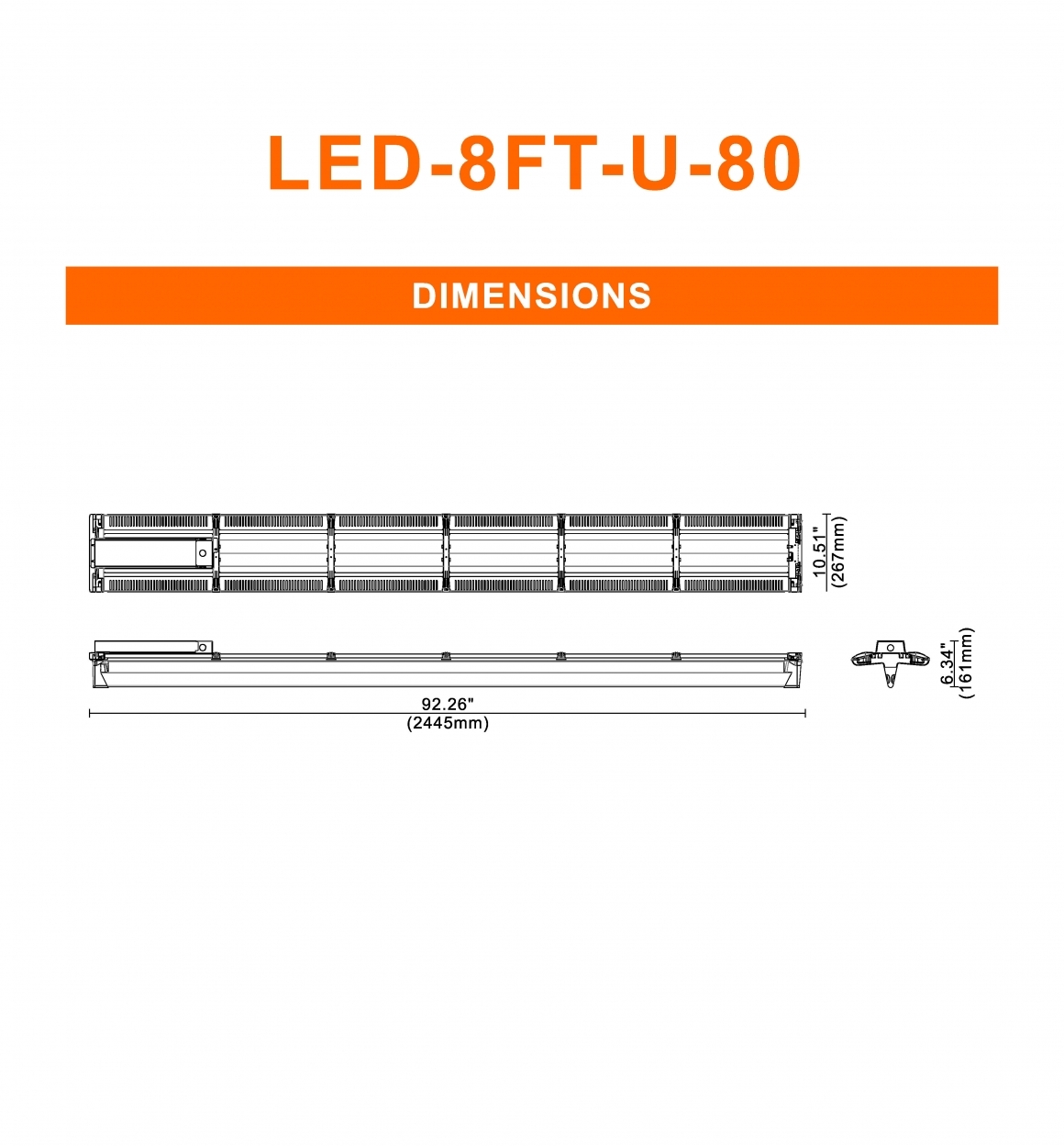

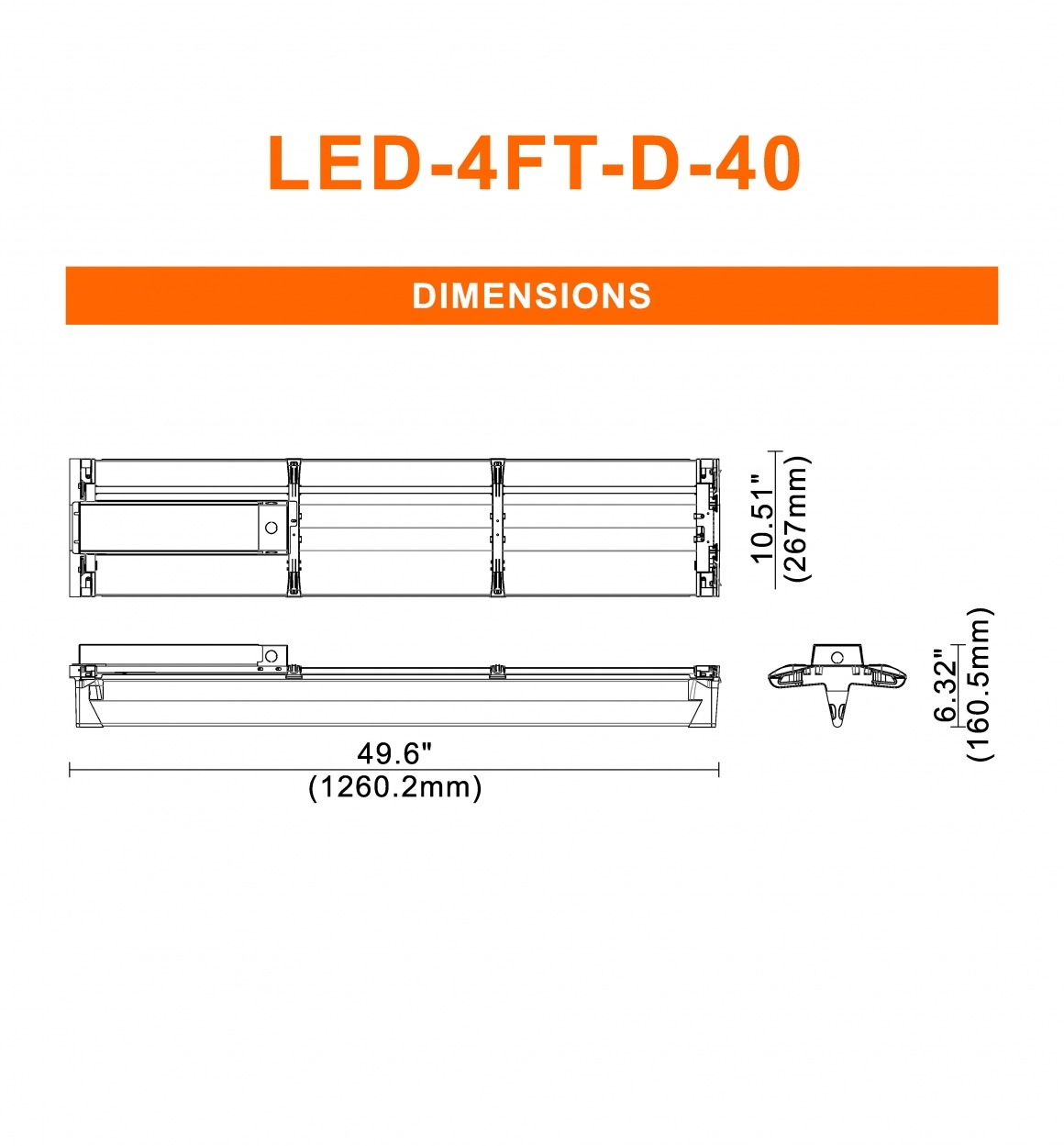

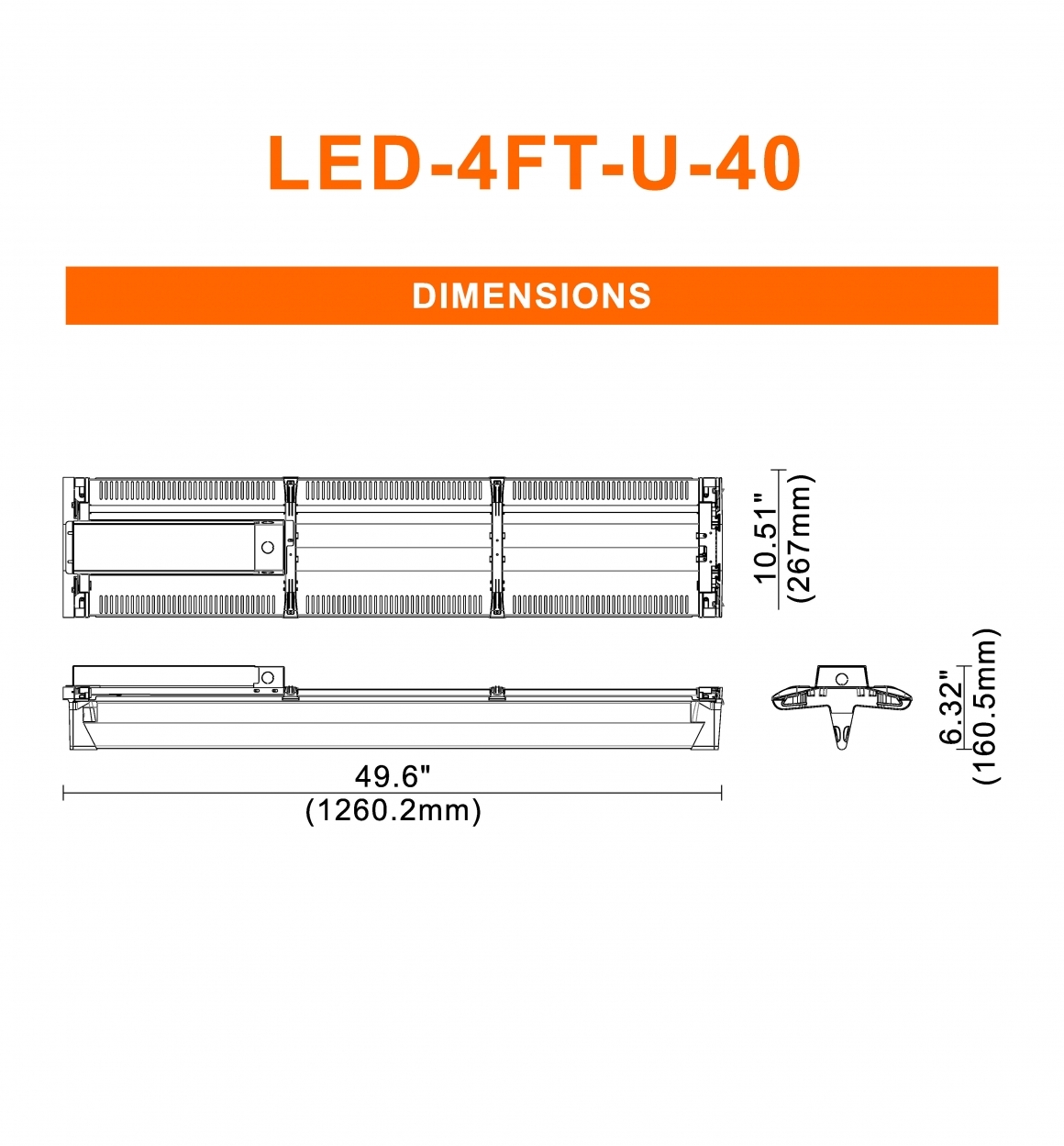

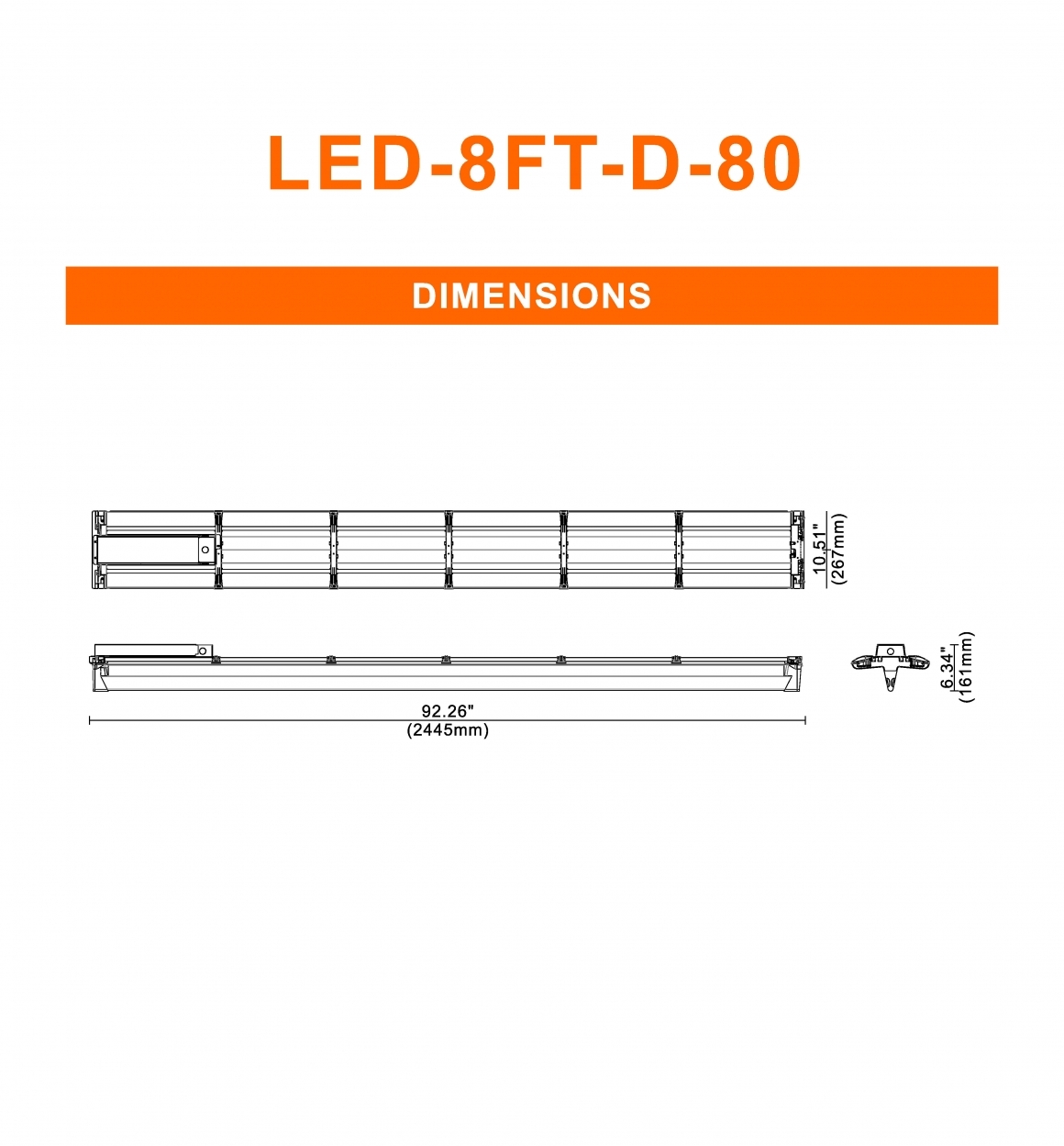

    Dimensions (Inches) 49.6" X 10.51" X 6.32" 92.26" X 10.51" X 6.34"
    Color Rendering Index (CRI) 80+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277VAC

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories

    LED-4F / 8F    		 40W
    51W
    69W
    81W
    92W
    95W
    127W
    182W    		 120-277V 3000K
    4000K
    5000K    		 • Custom Quickie Connector
    Quickie Cable    		 Dimmable Driver 0-10V standard
    Standard 2kV Surge protector
    Occupancy Sensor (PIR) optional
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
