LED-1850B

LED-1850B
LED SURFACE MOUNT LIGHT

This newly designed luminaire with built-in heatsink in casting featuring its versatility that can be served as wall light, flood light and etc.
Incorporated with high performance Led module along with high-quality optical reflector, this fixture performs efficiently and steadily against harsh outdoor environment.

Spec. Download

LED SURFACE MOUNT LIGHT

-UL and CUL listed for wet location
-Solid construction die-cast aluminum body
-DLC Listed
-UV stabilized powder coated finish
-High impact resistant tempered glass
-Optional 347Vl with adder.
-Optional photo control with adder.
-Finish: Bronze. Color option wiht adder.
-Available Options as adder: TR Brackets, SFS Brackets, SFB Slip Fitter, Quick Mount.

Model Number	LED-1850B
System Wattage	14W	22W	30W	40W	58W
Delivered Lumens (Lms.)	1380 lm**	2177 lm**	2890 lm**	4121 lm**	6920 lm**
Efficacy (Lm/W)	99 lm/w	99 lm/w	97 lm/w	103 lm/w	119 lm/w
Color Rendering Index (CRI)	70+
Color Temperature (CCT)	5000K
Input Voltage	120~277V
MA	300MA	480MA	700MA	950MA	1400MA
Equivalent	70W MH	70-100W MH	100-150W MH	150W MH	200W MH

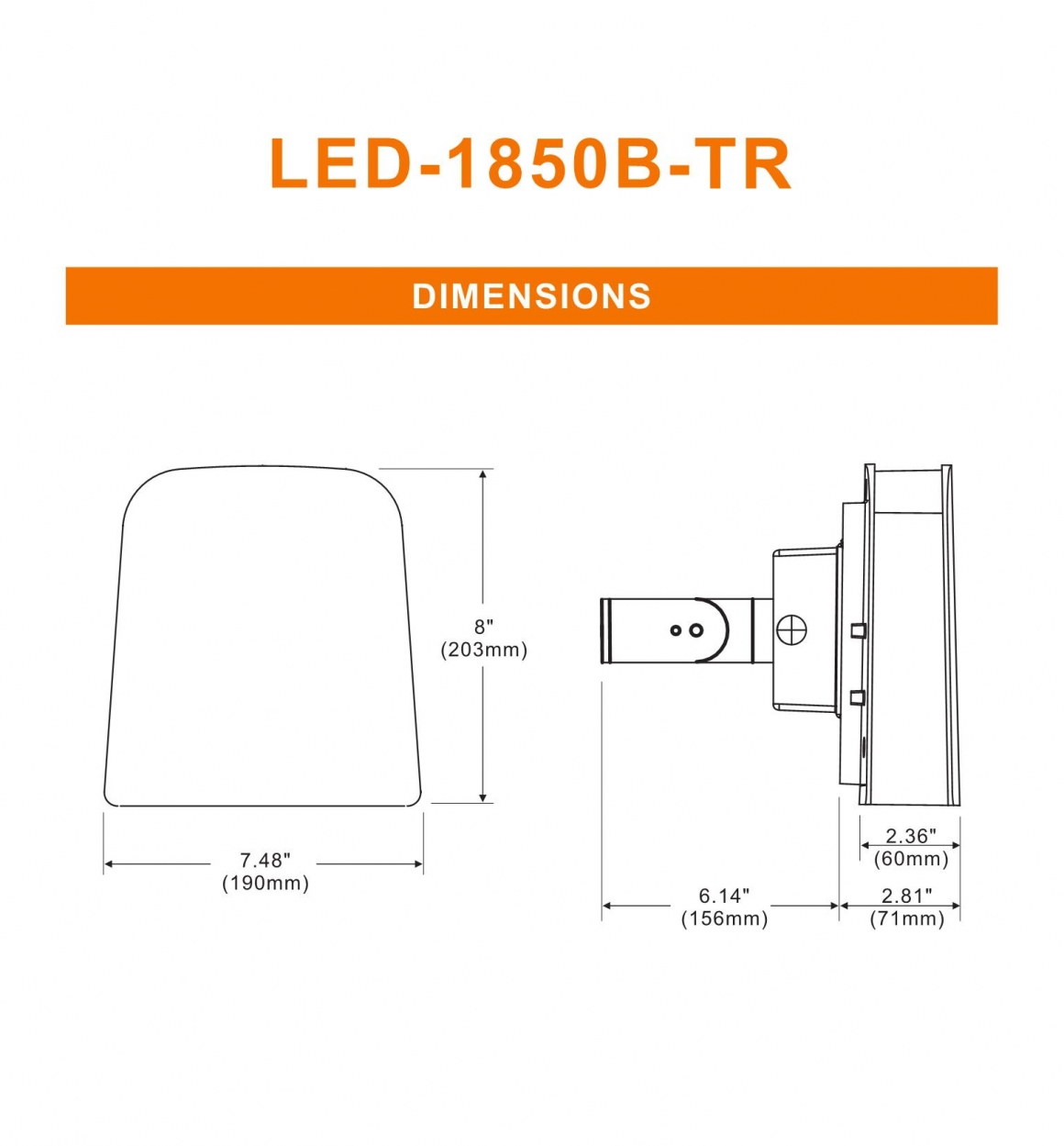

Dimensions (Inches)	7.48" x 2.81" x 8" inches
Weight (kg / lb)	2.7kg / 5.94lb

Build Your Order

Model Number	System Wattage	Distribution	Voltage	CCT	Electrical	Housing Finish	Mounting
LED-1850B	14W 22W 30W 40W 58W	N/A	120-277V 347V**	5000K CUSTOM**	Photo control**	Bronze Black CUSTOM	TR Brackets SFB Slip Fitter SFS Brackets

**Optional with adder
*Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
**Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
Actual production units may vary from the values reported here by up to +/-10%.

Download Datasheet
