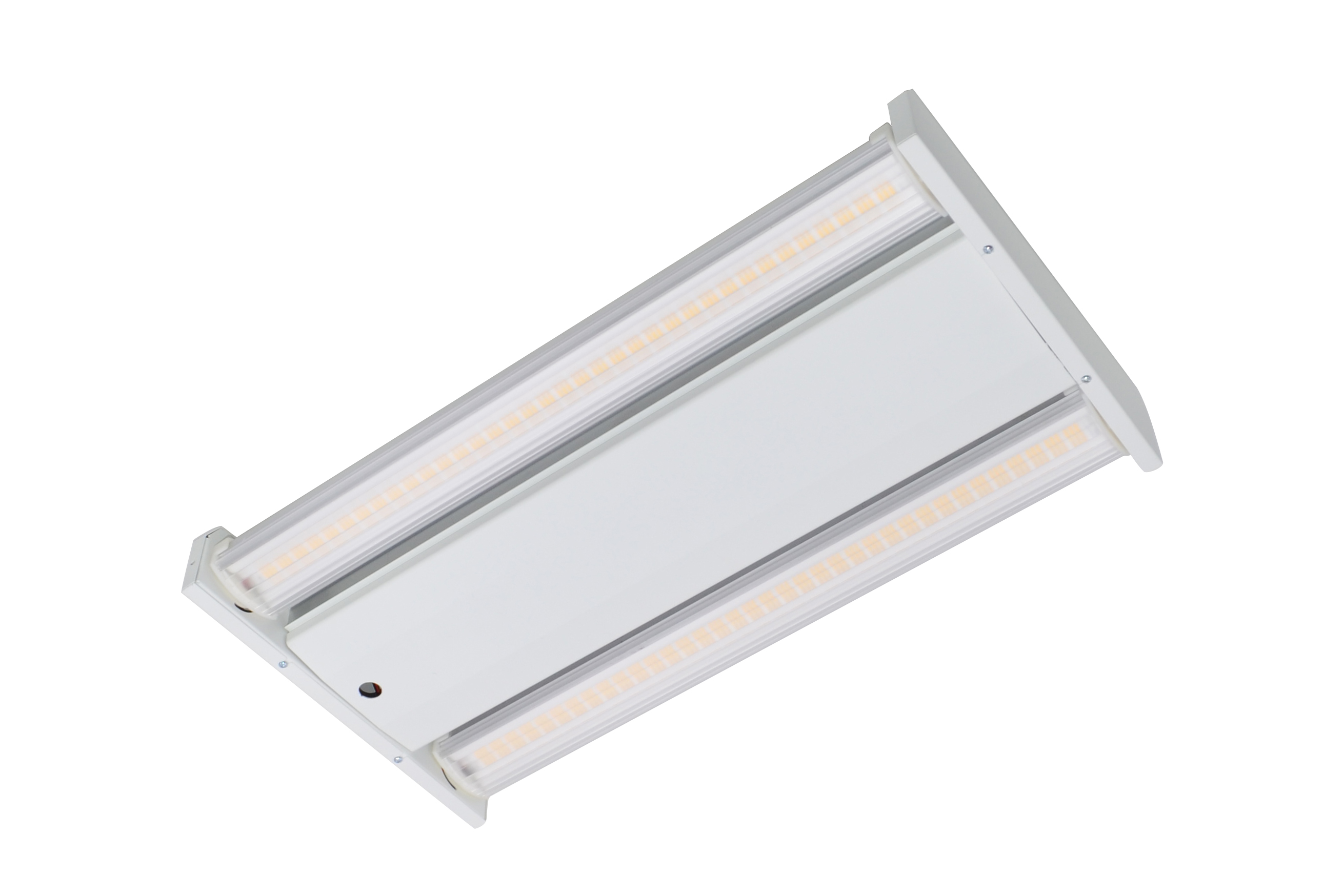

LED-HBF 2FT/ 4FT

LED-HBF 2FT/ 4FT
LED HIGH BAY LIGHTING

With its slim design, this New High-Bay from Grandlite seamlessly blends flat high quality housing and preision optics to produce a sleek, subtle aesthetic that meets most office ceiling application needs, and with its built-in J-box design, this fixture is very installation friendly.

Ideal for Office spaces, supermarkets, and meeting rooms.
Spec. Download
  • HIGH BAY LIGHTING


    FEATURES:
    -UL and CUL listed
    -Housing made of high quality aluminum with high reflectance paint, providing high lumen output.
    -Suitable for use in -400C to + 500C.
    -Efficacy:  Up to 165 lumens per watt (see individual wattage data).
    -CCT:  3000K / 4000K / 5000K.
    -CRI >   80CRI.
    -Optics:  Frosted Lens producing superior uniformity.

    ELECTRICAL FEATURES:
    -Voltage:  120-277V standard.
    -4KV Surge prtector per ANSI/IEEE C62.412;
    -Dimming 0-10V driver Standard.

    FINISHES:
    -Polyester powder white finish, Multi-stage process produces 3mil thickness for superior corrosion and maximum environment durability.

    Model Number LED-HBT2-2FT-100 LED-HBT2-2FT-150 LED-HBT4-2FT-240 LED-HBT4-2FT-300 LED-HBT2-4FT-240 LED-HBT2-4FT-300 LED-HBT4-4FT-400
    Syste Wattage 100W 155W 220W 300W 220W 300W 420W
    Dist. Type Type V Type V Type V Type V Type V Type V Type V
    Delivered Lumens (Lms.) 16198/14254/12148 lm** 24568/21620/18426 lm** 36000/32000/27000 lm** 45000/39600/33750 lm** 36000/32000/27000  lm** 45000/39600/33750  lm** 58000/51000/43500  lm**
    Efficacy (Lm/W) 158 lm/W 157 lm/W 158 lm/W 158 lm/W 158 lm/W 158 lm/W 158 lm/W
    Dimensions (Inches) 22.6" X 11.9" X 7.35" inches 42.6" X 11.9" X 7.35" inches 22.6" X 17.8" X 7.35" inches 42.6" X 11.9" X 7.35" inches
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277VAC

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories

    LED-HBF    		 100W
    155W
    220W
    300W
    420W    		 120-277V 3000K
    4000K
    5000K
    • Custom    		 WHITE
    • Custom    		 Chain or Pendant  Dimmable Driver 0-10V standard
    Standard 4kV Surge protector
    Emergency Battery back up
    **Optional with adder
      *Different LED Kelvin temperature available with 4-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
