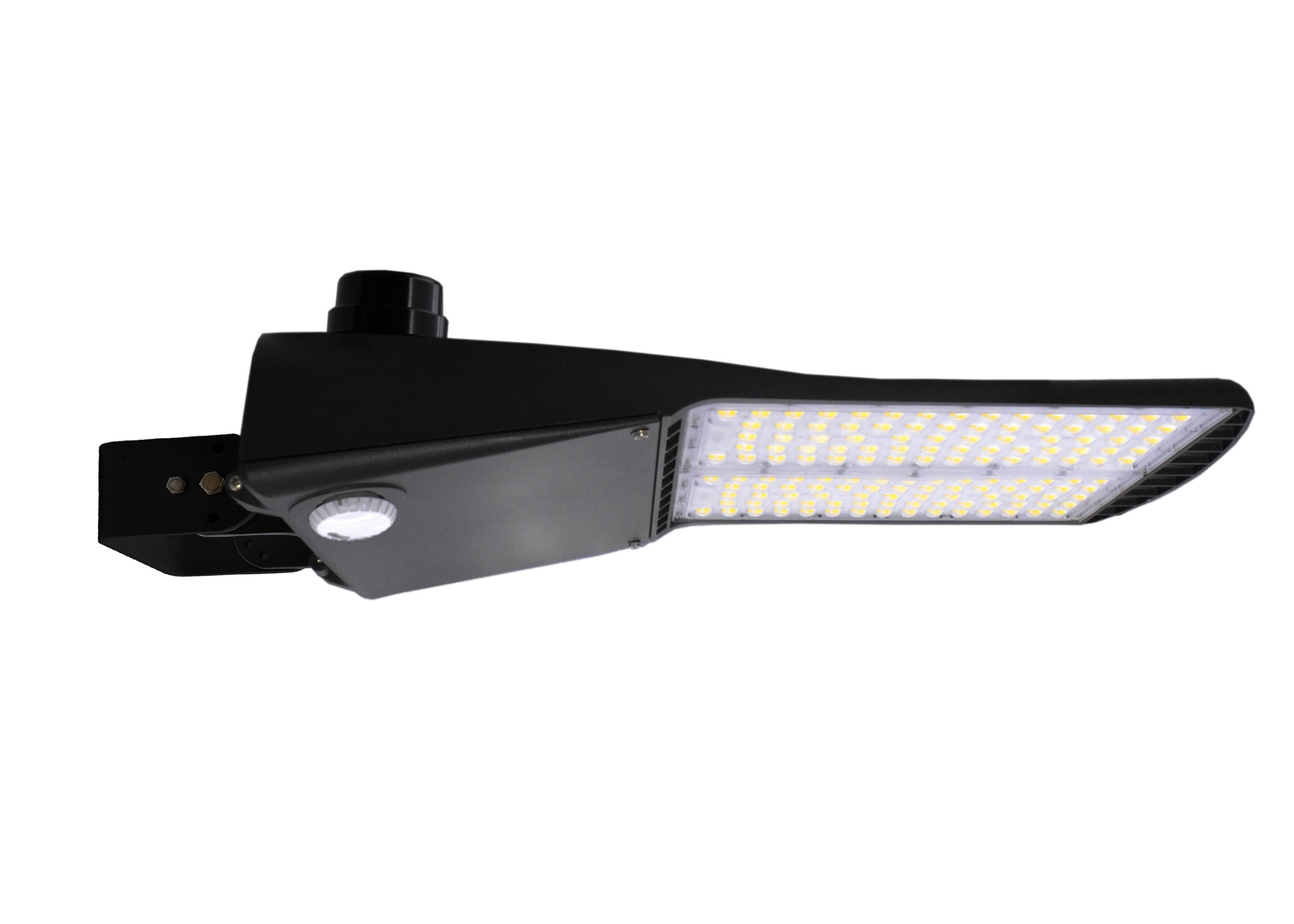

LED-6032

LED-6032
LED AREA LIGHT

This slick and modern luminaire has been designed to to be powered efficiently.
With a beautiful slimline design along with one of the highest lumen performance on the market,this versatile fixture can be used as a flood light or an area light. Including a multitude of mouting options, surge protection devices, IOT photocell capability, and the most technologically advanced LED's on the market, the LED-6032 is ready to conquer the lighting landscape.


Spec. Download
  • LED AREA LIGHT

    -UL and CUL listed.
    -ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
    -LEDs:  The most technologically advanced LED chips in the market.
    -UV stabilized powder coated finish
    -Lens:  Optional Type III, Type IV,  Type V optics.
    -3-pin / 5-pin / 7-pin Receptacle.
    -Bi-Level Dimmable or Photocontrol optional available with adder.
    -IOT Photocell capability.
    -Standard 4kV Surge.
    -Mounting options:  Trunnion, Slip Fitter, and Pole Mount
    -Optional 347V or 480V with adder.
    -Finish - Bronze. Color options with adder
    -Suitable for Street & Tunnel, Park, Gas Station, Parking, and Industrial Site.



    Model Number LED-6032
    System Wattage 200W 250W 290W
    Delivered Lumens (Lms.) 39470 lm**
    Efficacy (Lm/W) 136 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 3000K / 4000K / 5000K
    Input Voltage 120~277V AC / 347-480V
    Dimensions (Inches) 14"x 24.8" x 4.52" (Pole Mount PM)
    Weight (kg / lb) 11kgs / 24.22lbs


    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories

         LED-6032
         		 200W
    250W
    290W    		   120-277V
      347-448V      		 3000K
    4000K
    5000K
    • Custom    		 Bronze
    • Custom    		 POLE MOUNT 6" /10"
    TRUNNION
    Slip Fitter
    U Bracket    		 Lens: Type III, IV, V options as options
    Bi-Level Dimmable or Photocontrol options
    IOT Photocell capability
    Standard 4kV Surge
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
