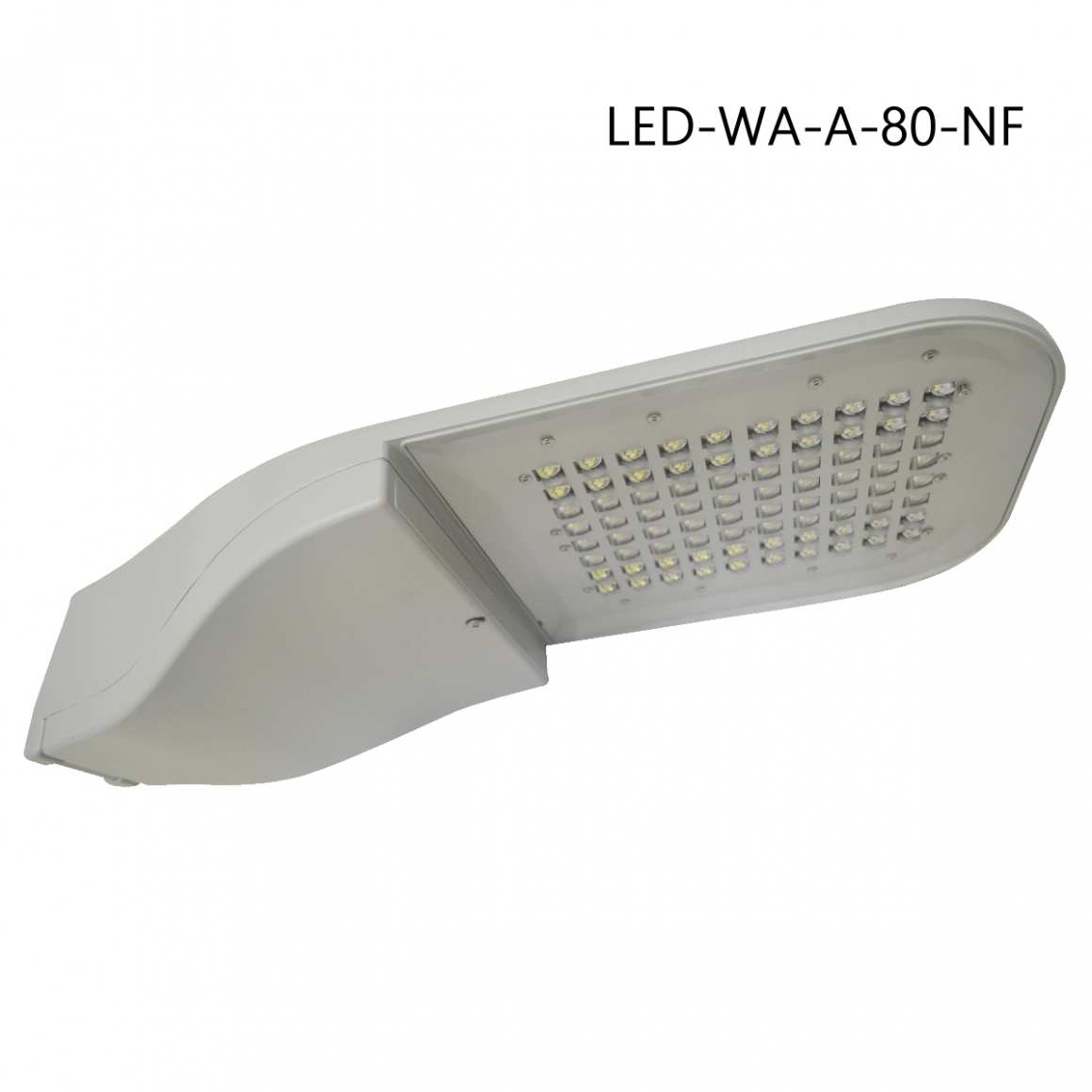

LED-WA-A-40/60/80 -NF

LED-WA-A-40/60/80 -NF
LED Roadway Light

The uniquely designed LED street light luminaire combines advanced technology and functional design to incorporate with a high efficiency LED module and precise optics control.
This luminaire performs efficiently and reliably against rugged outdoor environment. Constructed of die-cast aluminum, this street light is designed to optimize heat dissipation.


Spec. Download
  • LED Roadway Light

    -UL and CUL listed for wet locations.
    -Solid construction die-cast aluminum body.
    -UV stabilized powder coated finish.
    -DLC Listed.
    -Patented Fixture.
    -Aerodynamic shape design for low wind resistance.

    Options:
    -Optional NEMA photo control with adder .
    -Various light distribution - Wide / Narrow distribution available.
    -Built-in SlipFitter with inner diameter 2 1/8".
    -Optional receptical with adder.
    -Finish: Gray.  Color option with adder.


    Model Number LED-WA-A-40-NF LED-WA-A-60-NF LED-WA-A-80-NF
    System Wattage 88W 135W 183W
    Delivered Lumens (Lms.) 8600 lm** 14975 lm** 17683 lm**
    Efficacy (Lm/W) 97 lm/w 111 lm/w 97 lm/w
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 5000K
    Input Voltage 120~277V
    MA 665MA 700MA 650MA
    Equivalent 250W MH 320W-400W MH 400W MH
    Dimensions (Inches) 27.5"x14.18"x5.35"
    Weight (kg / lb) 8.22 kg / 18lb 9.8 kg / 21.6lb

    Build Your Order
    Model
    Number    		 System
    Wattage    		 Distribution Voltage CCT Electrical Housing
    Finish    		 Mounting
    LED-WA-A-40-NF             88W Wide (3x3)
    Narrow (5x5)                 		 120-277V        5000K NEMA photo control**
    Receptacle**    		 Gray​
    CUSTOM**    		 Built in slip fitter with inner diameter 2 1/8"
    LED-WA-A-60-NF           135W
    LED-WA-A-80-NF             183W
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.

  •  Download Datasheet
