LED-6098

LED-6098
LED AREA LIGHT

This slick and modern luminaire has been designed to handle any environment.
With a beautiful slimline design along with one of the highest lumen performance on the market,
this versatile fixture can be used as a flood light or an area light. Including a multitude of mouting
options, surge protection devices, IOT photocell capability, and the most technologically advanced
LED's on the market, the LED-6098 is ready to conquer the lighting landscape.
Spec. Download
  • LED AREA LIGHT

    -UL and CUL listed.
    -ONE-PIECE die-cast aluminum body with die-cast hinge panel for easy installation access.
    -LEDs:  The most technologically advanced LED chips in the market.
    -UV stabilized powder coated finish
    -Lens:  Optional Type III, Type IV,  Type V optics.
    -Bi-Level Dimmable or Photocontrol optional available with adder.
    -IOT Photocell capability.
    -Standard 4kV Surge.
    -Finish - Bronze. Color options with adder


    Model Number LED-6098
    System Wattage 73W 100W 147W 178W
    Dist. Type TYPE III TYPE IV TYPE V TYPE III TYPE IV TYPE V TYPE III TYPE IV TYPE V TYPE III TYPE IV TYPE V
    Delivered Lumens (Lms.) 9500 lm**  9200 lm**  9500 lm**  11400 lm** 12100 lm** 12700 lm** 17320 lm** 17565 lm** 18489 lm** 19835 lm** 20325 lm** 21088 lm**
    Efficacy (Lm/W) 123 lm/W 126 lm/W 130 lm/W 114 lm/W 121 lm/W 127 lm/W 118 lm/W 119 lm/W 126 lm/W 111 lm/W 114 lm/W 118 lm/W
    Color Rendering Index (CRI) 70+
    Color Temperature (CCT) 4000K / 5000K
    Input Voltage 120~277V

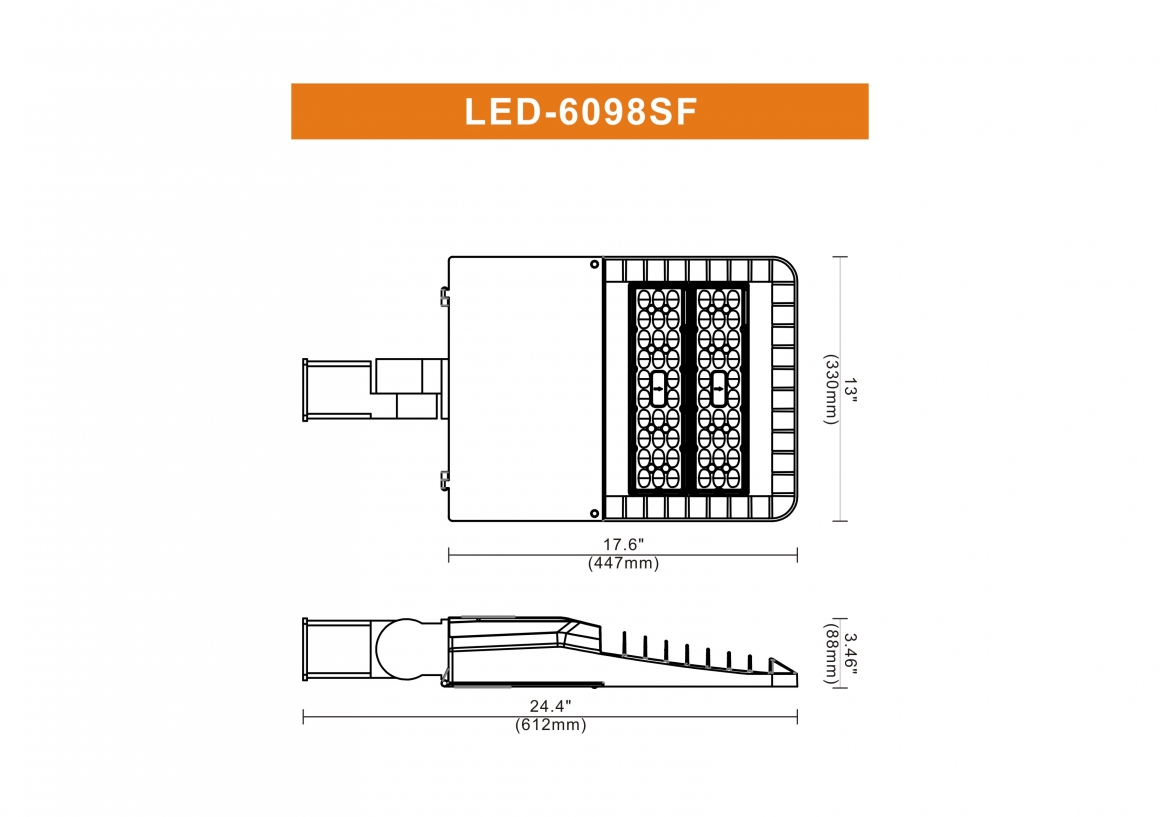

    Dimensions (Inches) 25.2"x13"x5.6" (Pole Mount PM)
    Weight (kg / lb) 8.7kgs / 19.16lbs


    Build Your Order
    Model
    Number    		 System
    Wattage    		 Voltage CCT Housing
    Finish    		 Mounting Accessories
    LED-6098
    		 73W
    100W
    147W
    178W    		 120-277V 4000K
    5000K
    • Custom    		 Bronze
    • Custom    		 POLE MOUNT 6" /10"
    TRUNNION
    Slip Fitter
    U Bracket    		 Lens: Type III, IV, V options as options
    Bi-Level Dimmable or Photocontrol options
    IOT Photocell capability
    Standard 4kV Surge
    **Optional with adder
      *Different LED Kelvin temperature available with 5-6 week lead time. Please call for quote.
    **Disclaimer: This test report was produced in accordance with IES LM-79 photometric testing protocol for luminaires, using a single representative test fixture.
       Actual production units may vary from the values reported here by up to +/-10%.
